Projector OEM Factory
Projector OEM Factory
Applies for: Outdoor, Party
Technology: LCD
Resolution: 1080P
Brightness: 500 ANSI
CPU: MTK 9269
OS: Android 9
24W Loud Speakers
GTV built-in
Applies for: Home Theater, Hotel
Technology: LCD
Resolution: 1080P
Brightness: 500 ANSI
CPU: MTK9269
OS: Android 9
Applies for: Home Theater, Hotel
Technology: LCD
Resolution: 1080P
Brightness: 500 ANSI
CPU: MTK9269
OS: Android 9
Applies for: Hotels, Resorts
Technology: LCD
Resolution: 1080P
Brightness: 500 ANSI
CPU: MTK9269
OS: Android 9
Applies for: Home Theater, Hotel
Technology: LCD
Resolution: 1080P
Brightness: 500 ANSI
CPU: MTK9269
OS: Android 9
Applies for: Meeting Rooms, Classrooms, Hotels
Technology: LCD
Resolution: 1080P
Brightness: 12,400 Lumens
CPU: MTK9269
OS: Android 9
Miracast Supported

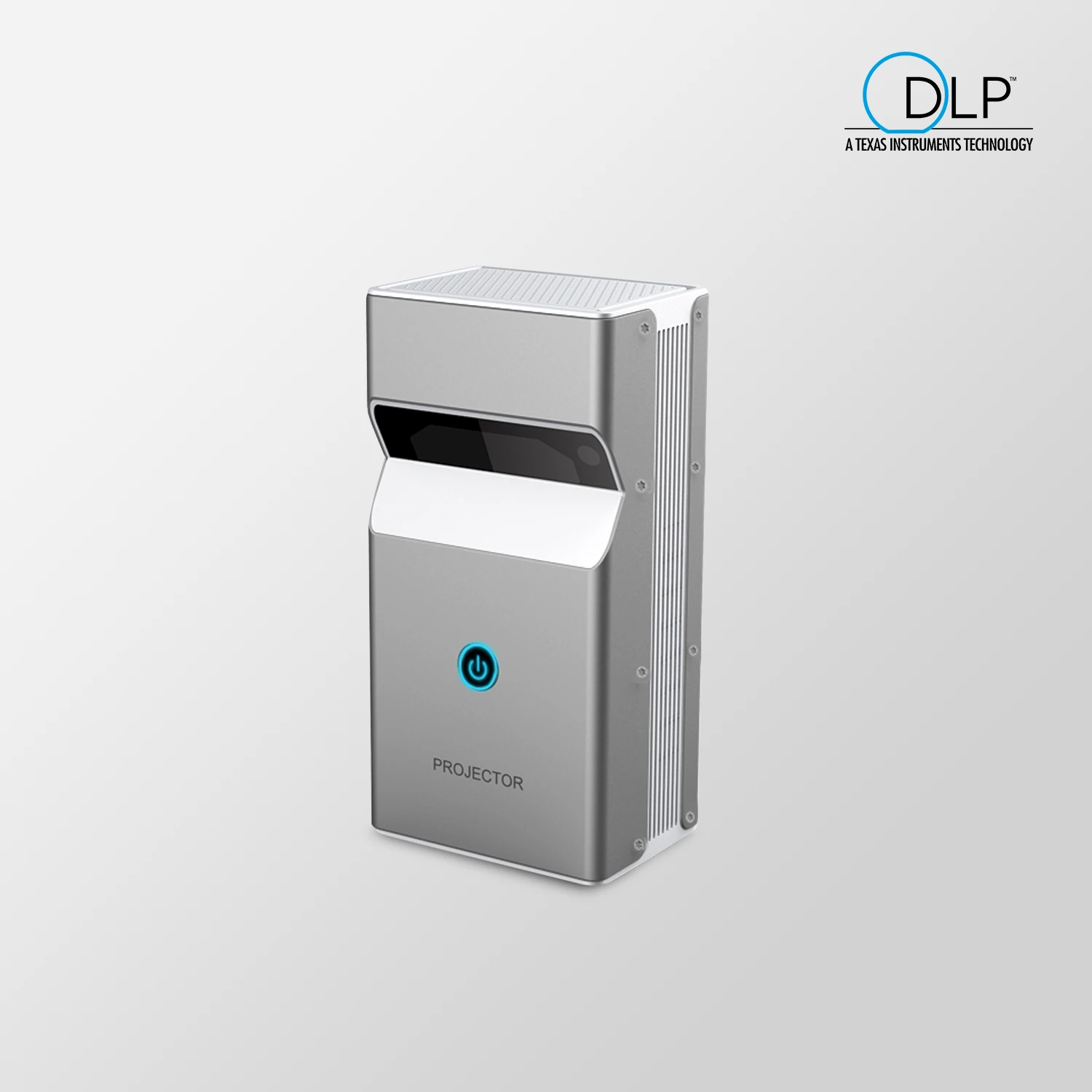

Applies for: Desktop projection, Ultra short throw home theater
Technology: DLP（0.23DMD)
Resolution: 1920x1080P WVGA
Brightness: 450 ANSI
CPU: Amlogic T972
OS: Android 9
1. 3D-LUT Dynamic Compensation
2. Ambient Light Adaptation
3. Sealed-Environment Color Protection
Houses LED light source and condenser lens array, connected directly to metal housing via copper heat pipes (housing temperature ≤55°C)
Active cooling: 1× 4020 turbo fan (12V/0.15A, noise ≤22dB) for forced convection
Fully sealed design containing LCD panel and polarization optics, with strict temperature control ≤45°C
Thermally isolated from light source chamber by nano-porous insulation glass (thermal conductivity: 0.8W/m·K)
| Performance Test Data | |||
|---|---|---|---|
| Parameter | Test Unit | Competitor | Advantage |
| LED Junction Temp. (@500ANSI) | 82°C | 105°C | 23°C lower |
| Luminous Efficacy Degradation (2000h) | ≤3% | ≥12% | 75% reduction |
| Fan Speed | 3,200 RPM | 4,500 RPM | 28% quieter |
| Cold Start to Full Brightness | 18 sec | 35 sec | 49% faster |
Testing result after optimization
| Metric | Our Sealed Optical Engine (500ANSI) | Traditional Open Optical Engine (Same Power) | Improvement |
|---|---|---|---|
| Luminous Efficacy (lm/W) | 6.8 | 5.1 | +33% |
| LCD Temperature | ≤45°C | ≥60°C | -25% |
| Polarized Light Utilization | 85% | 50% | +70% |
| 2000-hour Lumen Maintenance | ≤5% | ≥15% | -66% |
| Dustproof Rating | IP6X | IP3X | Fully Sealed |
A retention method where a lens is secured within a housing groove using a spring-loaded metal clip. Uniform radial pressure is applied by the clip’s elasticity, while epoxy resin adhesive is dispensed along the lens-housing interface to create a secondary hermetic seal against dust ingress.
Key Advantages
